Camille Bauer KINAX® WT717 United Kingdom

Enapart, with a presence in 14 countries, sources products from around the world to offer you the best possible prices as a local reseller in the United Kingdom .  To acquire the best quotation for your desired product, kindly contact us through e-mail or our contact form.

page

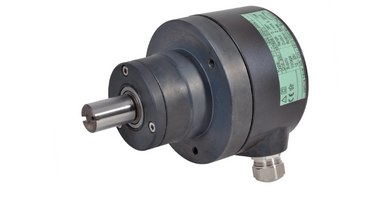

Transmitter with contactless, capacitive scanning system for detecting the angular position of a shaft. A DC signal of 4..20mA, which is proportional to the measured value, is available at the measuring output. Due to its robust design, it is preferably used in large machinery and shipbuilding, in transport vehicle construction and in the chemical industry.
Features
Patented contactless capacitive system, wear-free
Measuring range, direction of rotation, characteristics, output changeover and other functions can be programmed via PC: facilitates planning and project work, short lead times, minimal inventory
Angle of rotation measuring range: 0°…10° to 0°…50° or 0°…50° to 0°…350°
With gearbox 0…20° to 0…1555 revolutions
Measurement output (measuring/supply circuit) utilizes 2-wire connection (4 to 20 mA signal)
Simulation of measured value allows to test subsequent control circuits, control loops or measuring circuits during installation
Display of present measurands and graphical representation on screen for longer time periods
Adjustment of mechanical position and fine adjustment of the analog output, zero point and span may be set independently
Programmable output characteristics: linear, V-characteristic or freely selectable linearization curve
Shaft can be turned through full, no damage occurs even if the upper limit value of the measuring range is exceeded
Serial interface
Permissible static load on the shaft: max. 1000 N (radial), max. 500 N (axial)
Surface mounting device in rugged housing (IP67): vibration and shock resistant

717-11090D1000000

717-31090D1000000

717-51090D1000000

717-12090D1000000

717-32090D1000000

717-52090D1000000

717-11190D1000000

717-31190D1000000

717-51190D1000000

717-12190D1000000

717-32190D1000000

717-52190D1000000

717-110Z0D1000000

717-310Z0D1000000

717-510Z0D1000000

717-120Z0D1000000

717-320Z0D1000000

717-520Z0D1000000

717-111Z0D1000000

717-311Z0D1000000

717-511Z0D1000000

717-121Z0D1000000

717-321Z0D1000000

717-521Z0D1000000

717-11090E1000000

717-31090E1000000

717-51090E1000000

717-12090E1000000

717-32090E1000000

717-52090E1000000

717-11190E1000000

717-31190E1000000

717-51190E1000000

717-12190E1000000

717-32190E1000000

717-52190E1000000

717-110Z0E1000000

717-310Z0E1000000

717-510Z0E1000000

717-120Z0E1000000

717-320Z0E1000000

717-520Z0E1000000

717-111Z0E1000000

717-311Z0E1000000

717-511Z0E1000000

717-121Z0E1000000

717-321Z0E1000000

717-521Z0E1000000

717-11090D100000A

717-31090D100000A

717-51090D100000A

717-12090D100000A

717-32090D100000A

717-52090D100000A

717-11190D100000A

717-31190D100000A

717-51190D100000A

717-12190D100000A

717-32190D100000A

717-52190D100000A

717-110Z0D100000A

717-310Z0D100000A

717-510Z0D100000A

717-120Z0D100000A

717-320Z0D100000A

717-520Z0D100000A

717-111Z0D100000A

717-311Z0D100000A

717-511Z0D100000A

717-121Z0D100000A

717-321Z0D100000A

717-521Z0D100000A

717-11090E100000A

717-31090E100000A

717-51090E100000A

717-12090E100000A

717-32090E100000A

717-52090E100000A

717-11190E100000A

717-31190E100000A

717-51190E100000A

717-12190E100000A

717-32190E100000A

717-52190E100000A

717-110Z0E100000A

717-310Z0E100000A

717-510Z0E100000A

717-120Z0E100000A

717-320Z0E100000A

717-520Z0E100000A

717-111Z0E100000A

717-311Z0E100000A

717-511Z0E100000A

717-121Z0E100000A

717-321Z0E100000A

717-521Z0E100000A
