Multichannel power quality and load flow for network level 7 (low voltage)
Features
Portable industrialized PQI multichannel meter according to 61000-4-30 Ed. 3 of class A
Metrological certification IEC61000-4-30 of METAS according to IEC62586-2
Integrated WebGUI as HMI, incl. comprehensive cyber security
Hard case with IP65 with closed housing
Auxiliary power (supply voltage) 230VAC via mains adapter according to 300V CAT IV
nominal frequency 42…50…58 Hz
Security requirement 600V CAT IV (measuring inputs current & voltage)
64GB SD memory

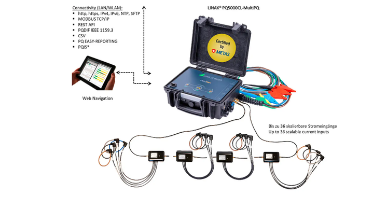

Maximum 36 current measurement inputs per device (9 x L1/L2/L3/N)
1 x voltage tap L1/L2/L3/N/PE by means of voltage measuring leads
Fault recorder for current and voltage events
Display and evaluation via WEB interface of the device
Event list with trigger source, event type, event duration and characteristic event values
RMS½ values: up to 1 second before and max. 3 minutes after the event
Zoom options & data points for on-site analysis
Load profile recording
Time synchronization via NTP server
Data export via csv (formatable)
Current values are time-synchronized to voltage (IEC61000-4-30)
UPS on capacitor basis (max. 3 seconds bridging)
Data protocols: Modbus/TCP, http, https, IPv4, IPv6, NTP, SFTP, REST API
Data communication via LAN or WLAN access point to various end devices
Switzerland: analogy and evaluation via PQIS® possible



PQ5000MOBCLM-121D

PQ5000MOBCLM-131D
