Spieth Series AL/IL United Kingdom

To acquire the best quotation for your desired product, kindly contact us through e-mail or our contact form.

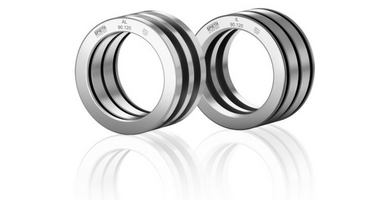

Friction-locked shaft-hub connection for shafts with an h-tolerance zone. Clamping force initiation can be freely configured. Series AL for clamping force initiation from the borehole.

¹⁾ Max. perm. clamping force. For automated operation, the clamping sleeve should be clamped with max. 0.75xF.
²⁾ Design specification, not to be confused with actuation travel. For explanations, see p. 55.
³⁾ d₂ > 80 mm = Concentricity to IT4
